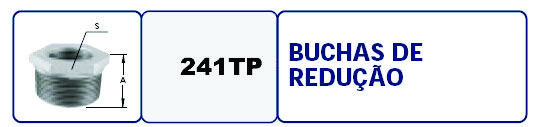

| Diâmetro Nominal | Dimensões em mm | Peso Unit. Galv.g | ||
|---|---|---|---|---|
| Polegada | mm | A | S (máx) | |
| 3/8" x 1/4" 1/2" x 1/4" 1/2" x 3/8" 3/4" x 1/4" 3/4" x 3/8" 3/4" x 1/2" 1" x 3/8" 1" x 1/2" 1" x 3/4" 1.1/4" x 1/2" 1.1/2" x 3/4" 1.1/4" x 1" 1.1/2" x 1/2" 1.1/2" x 3/4" 1./12" x 1" 1.1/2" x 1.1/4" 2" x 1/2" 2" x 3/4" 2" x 1" 2" x 1.1/4" 2" x 1.1/2" 2.1/2" x 1" 2.1/2" x 1.1/4" 2.1/2" x 1.1/2" 2.1/2" x 2" 3" x 1.1/2" 3" x 2" 3" x 2.1/2" 4" x 2" 4" x 2.1/2" 4" x 3" 5" x 4" 6" x 4" 6" x 5" | 10 x 8 15 x 8 15 x 10 20 x 8 20 x 10 20 x 15 25 x 10 25 x 15 25 x 20 32 x 15 32 x 20 32 x 25 32 x 15 40 x 20 40 x 25 40 x 32 50 x 15 50 x 20 50 x 25 50 x 32 50 x 40 65 x 25 65 x 32 65 x 40 65 x 50 80 x 40 80 x 50 80 x 65 100 x 50 100 x 65 100 x 80 125 x 100 150 x 100 150 x 125 | 20 24 24 26 26 26 29 29 29 31 31 31 31 31 31 31 35 35 35 35 35 40 40 40 40 44 44 44 51 51 51 57 58 58 | 19 22 22 30 30 30 36 36 36 16 16 16 50 50 50 50 65 65 65 65 65 80 80 80 80 95 95 95 120 120 120 145 175 175 | 17 35 27 72 63 50 107 102 86 200 183 146 261 236 201 124 412 405 416 352 288 622 644 604 500 921 969 642 1711 1752 1484 2049 3809 2765 |
